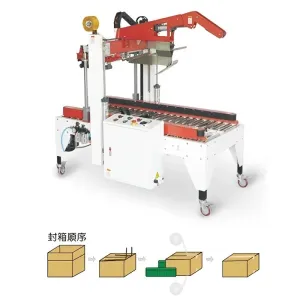

Automatic Flap Folding and Sealing Machine CCP-FI500: Comprehensive Industry Guide

1. Introduction

The Automatic Flap Folding and Sealing Machine CCP-FI500 is a versatile and reliable industrial packaging solution. It is designed to fold and seal carton flaps automatically, enhancing packaging efficiency while minimizing labor costs. This machine is widely used in logistics, e-commerce fulfillment, food and beverage, consumer goods, and pharmaceutical industries.

The CCP-FI500 offers precise tape application, high operational flexibility, and smooth integration with existing conveyor systems. By automating the flap folding and sealing process, it ensures consistent seal quality, reduces manual handling errors, and increases overall production line productivity.

2. Definition and Function

The Automatic Flap Folding and Sealing Machine CCP-FI500 is designed to automate the folding of carton flaps and apply adhesive tape for secure packaging. Unlike semi-automatic models, it requires minimal operator intervention, making it suitable for high-volume production environments.

Core Functions Include:

• Automatic folding of top and bottom carton flaps

• Precise tape sealing for secure closure

• Adjustable guides to accommodate different carton sizes

• Integration with conveyors for seamless packaging workflow

• PLC-based control system for accurate operations

3. Advantages of CCP-FI500

4. Technical Specifications

5. Working Principle

1. Carton Loading: Operators place cartons on the entry conveyor or use an upstream automatic feeding system.

2. Flap Folding: The machine automatically folds top and bottom flaps precisely.

3. Tape Sealing: Adhesive tape is applied to folded flaps using top and bottom tape heads.

4. Carton Discharge: Sealed cartons exit smoothly, ready for palletization or further packaging.

The CCP-FI500 ensures professional sealing quality while maintaining continuous, high-speed production.

6. Core Components

• PLC Control Panel: For adjusting speed, tape tension, and flap guides.

• Top and Bottom Tape Heads: Ensures consistent adhesive application.

• Conveyor System: Smooth transport of cartons through the sealing process.

• Safety Guards: Protect operators and prevent accidents.

• Industrial Frame: Heavy-duty steel for long-term durability.

7. Industry Applications

Logistics and Warehousing

Automates carton folding and sealing to improve shipment efficiency.

E-Commerce Fulfillment Centers

Supports medium to high-volume packaging while reducing errors.

Food and Beverage

Hygienic sealing for food cartons and beverage packaging.

Consumer Goods and Electronics

Secures sensitive products with consistent sealing quality.

Pharmaceuticals

Ensures compliant and secure packaging for regulated items.

8. Installation and Integration

Installation Requirements:

• Level concrete surface

• Stable electrical supply (220–380V)

• Operator workspace and safety clearances

• Optional integration with conveyors for continuous operations

Setup Tips:

• Level the machine base

• Connect power supply according to specifications

• Adjust carton guides to match the product dimensions

• Train operators on safety and operation procedures

9. Safety Features

• Emergency stop buttons for immediate shutdown

• Protective panels and guards to prevent injuries

• Sensors to detect jams or carton misalignment

• Audible alarms for operational issues

Operator Recommendations:

• Avoid reaching into moving machinery

• Disconnect power before maintenance

• Regularly inspect conveyors and tape heads

10. Maintenance Guidelines

11. Common Issues and Troubleshooting

12. Comparison With Other Machines

The Automatic Flap Folding and Sealing Machine CCP-FI500 is a robust, high-efficiency solution for modern packaging lines. It automates flap folding and tape sealing, ensuring consistent performance and reducing labor costs. Its adjustable settings, industrial construction, and operator-friendly interface make it ideal for logistics, e-commerce, and industrial packaging applications.
