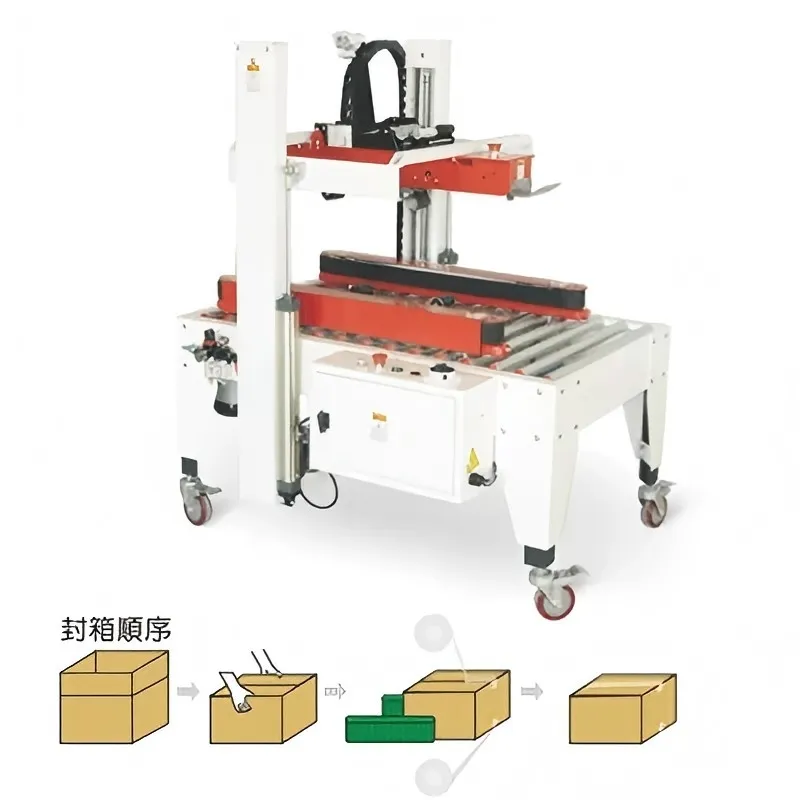

Automatic Top and Bottom Carton Sealing Machine CCP-FE500A
Information
Fully automatic adjustment on height and width for various size carton.
Side belts driven.
Carton size: (L)200-∞*(W)150-500* (H)150-500mm
Tape width: (W) 48/60/72mm*(L)800m/1000mm, OPP (alternative use)
Voltage: 220V, 1∮, 50HZ or specified by customers
Power: 240W
Belt speed: 18-20m/min
Belts: (W)48mm
Table height: 600-750mm (adjustable)
Machine size: (L)1160 (W)880 (H)1500mm
Machine net weight: 180kgs
Mechanical configuration:
1.Motor: GPG (Made in Taiwan)
2.Low-voltage electrical appliances: Schneider
3.PLC: SLJD
Product Encyclopedia
Automatic Top and Bottom Carton Sealing Machine CCP-FE500A: Comprehensive Industry Guide
1. Introduction
The Automatic Top and Bottom Carton Sealing Machine CCP-FE500A is a fully automated packaging solution designed for high-speed carton sealing operations. It efficiently applies adhesive tape to both the top and bottom surfaces of cartons, ensuring secure closure, reducing labor costs, and increasing packaging line productivity. This machine is widely used in logistics, e-commerce fulfillment, food and beverage, electronics, and consumer goods industries.
In today’s competitive market, businesses require reliable and consistent packaging solutions. The CCP-FE500A delivers precise, fast, and professional sealing performance while maintaining operational flexibility, making it a vital component of modern automated packaging lines.
2. What is an Automatic Top and Bottom Carton Sealing Machine CCP-FE500A?
An Automatic Top and Bottom Carton Sealing Machine CCP-FE500A is an industrial device that automatically seals cartons with adhesive tape on both the top and bottom flaps. Unlike semi-automatic models, the CCP-FE500A does not require manual placement or intervention once the machine is set up, allowing continuous, high-speed operation.
Key features include:
Fully automatic tape application
Adjustable carton size compatibility
Integration with conveyor systems
Durable and industrial-grade components
The machine improves sealing efficiency, reduces labor dependency, and ensures uniform sealing quality across high-volume production lines.
3. Advantages of Using CCP-FE500A
| Advantage | Description |
|---|---|
| Increased Productivity | Seals cartons faster than manual or semi-automatic machines |
| Consistent Quality | Ensures uniform tape application for professional results |
| Labor Savings | Reduces manual effort and operational fatigue |
| Flexible Carton Compatibility | Adjustable settings for a wide range of carton sizes |
| Compact Footprint | Suitable for limited space production lines |
| Durable Design | High-quality materials ensure long-term reliability |
| Easy Maintenance | Simple mechanical structure reduces downtime |
4. Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Automatic Top and Bottom Carton Sealing Machine CCP-FE500A |
| Carton Length Range | 150–600 mm |
| Carton Width Range | 120–500 mm |
| Carton Height Range | 100–450 mm |
| Tape Width | 48–60 mm |
| Sealing Mode | Top & bottom adhesive tape |
| Sealing Speed | Up to 35 cartons per minute |
| Power Supply | 220–380V, 50/60 Hz |
| Machine Power | 1.5–2.2 kW |
| Weight | 250–320 kg |
| Dimensions (L×W×H) | 1800×700×1400 mm |
| Operating Temperature | 0–45°C |
| Control Type | Fully automatic PLC control |
5. How It Works: Step-by-Step Operation
Carton Feeding: Cartons are loaded onto the entry conveyor automatically or via upstream conveyors.
Carton Alignment: Adjustable guides ensure cartons are perfectly aligned for tape sealing.
Top Tape Application: Automatic tape head rolls adhesive tape across the top flaps.
Bottom Tape Application: Simultaneously, another tape head seals the bottom flaps.
Discharge: Sealed cartons exit the machine and continue downstream for packing or palletization.
6. Core Components
PLC Control Panel: Allows precise adjustment of machine speed and carton size settings.
Tape Heads: Independent heads for top and bottom tape application with adjustable tension.
Conveyor System: Durable belt or chain conveyor for smooth carton transport.
Safety Guards: Protect operators from moving parts and provide emergency stop access.
Frame Structure: Stainless steel or coated frame for industrial durability.
7. Industry Applications
Logistics and Warehousing
Efficient carton sealing for shipment reduces damage and ensures secure packaging during transit.
E-commerce Fulfillment
Handles high volumes of small and medium cartons efficiently, reducing packing errors and improving operational speed.
Food and Beverage
Ensures hygienic, secure closure of cartons for safe transport and storage.
Electronics and Consumer Goods
Protects sensitive items with consistent sealing to prevent partial openings or damage.
Pharmaceutical Packaging
Maintains compliance with packaging standards requiring repeatable and reliable closure.
8. Installation and Integration
Requirements:
Level concrete floor
Stable electrical supply (220–380V)
Adequate ventilation
Sufficient operator access space
Optional integration with existing conveyors for continuous packaging
Setup Tips:
Align the base with a spirit level
Connect electrical power via certified electrician
Adjust carton guides to match carton sizes
Conduct safety and operational training for operators
9. Safety Features
Emergency stop buttons
Protective guard panels
Sensor detection to prevent jamming
Audible alarms for tape issues
Best Practices:
Never reach into moving machinery
Disconnect power before maintenance
Regularly inspect conveyor alignment
Train operators thoroughly
10. Maintenance Guidelines
| Frequency | Task |
|---|---|
| Daily | Clean tape heads, wipe down conveyor, inspect for debris |
| Weekly | Lubricate moving parts, inspect rollers, check sensors |
| Monthly | Check motor bearings, calibrate tape tension, inspect electrical connections |
11. Common Issues and Solutions
| Issue | Cause | Solution |
|---|---|---|
| Tape Wrinkles | Incorrect tension | Adjust tension roller |
| Misaligned Seals | Carton guides misaligned | Reposition guides |
| Machine Jamming | Debris buildup | Clean feed path |
| Uneven Tape | Worn tape head | Replace tape head |
12. Comparison With Other Machines
| Feature | Semi-Automatic | CCP-FE500A Fully Automatic |
|---|---|---|
| Operator Requirement | Yes | No |
| Speed | Moderate | High |
| Cost | Lower | Medium |
| Maintenance | Simple | Moderate |
| Flexibility | High | Moderate |
| Feature | Manual Sealing | CCP-FE500A Fully Automatic |
|---|---|---|
| Speed | Low | High |
| Consistency | Inconsistent | Uniform |
| Labor | High | Low |
| Operator Fatigue | High | Minimal |
13. SEO Keywords for Google Optimization
Automatic Top and Bottom Carton Sealing Machine CCP-FE500A
Top Bottom Carton Sealer
Fully Automatic Carton Packaging Machine
Industrial Carton Sealing Equipment
Carton Tape Sealing Machine
CCP-FE500A Carton Sealer
The Automatic Top and Bottom Carton Sealing Machine CCP-FE500A is a highly efficient, reliable, and fully automatic solution for modern packaging operations. It provides fast, uniform tape sealing, reduces labor dependency, and ensures professional-grade carton closure for various industries. Its flexibility, durability, and user-friendly design make it ideal for logistics, manufacturing, and e-commerce applications.
