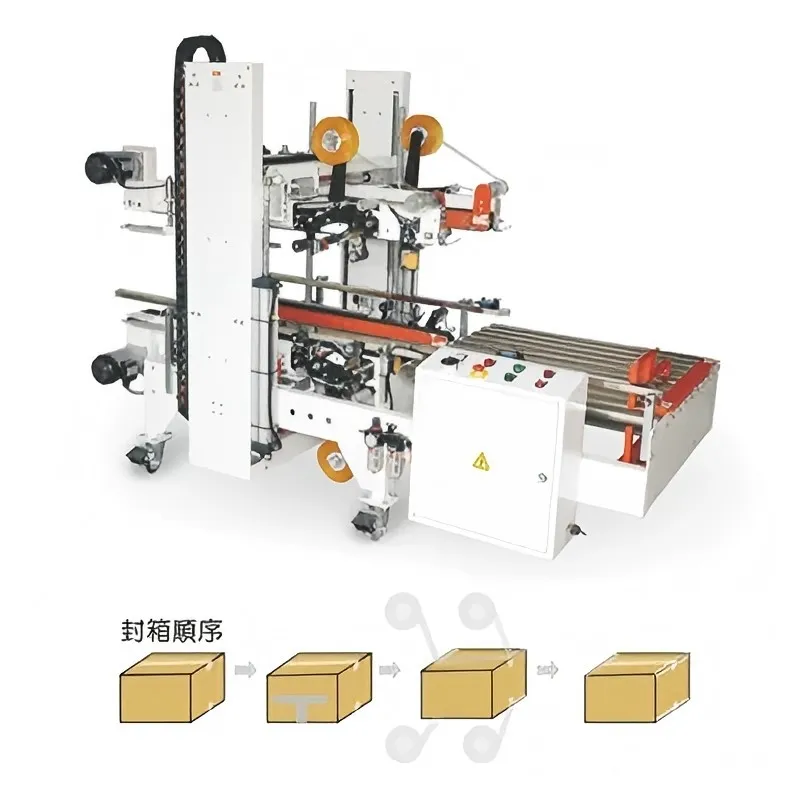

Automatic Carton Edge Sealing Machine L Type CCP-FH500L
Information
Compact and durable design, easy to operate.
Standard specification item.
Carton size: (L)320-600*(W)200-500* (H)180-500mm
Tape width: (W) 48/60/72mm*(L)800m/1000mm, OPP (alternative use)
Voltage: 220V, 1∮, 50HZ or specified by customers
Power: 1000W (customizable)
Belt speed: 18-20m/min
Table height: 600-650mm (adjustable)
Applicable pressure: 5kg.f/cm²-100nl/min
Machine size: (L)2000 (W)1130 (H)1530mm
Machine net weight: 450kgs
Mechanical configuration:
1.Motor: GPG (Made in Taiwan)
2.PLC: SIEMENS
3.Cylinder/solenoid valve: AirTAC
4.AC contactor, intermediate relay, push button switch set: Schneider
5.Blade: Made in China
6.Photoelectric: BANNER
Product Encyclopedia
Automatic Carton Edge Sealing Machine L Type CCP-FH500L: Complete Industry Guide
1. Introduction
The Automatic Carton Edge Sealing Machine L Type CCP-FH500L is a high-performance packaging machine designed for industrial carton edge sealing in medium to high-volume production environments. This fully automated L-type edge sealing system improves packaging efficiency, reduces labor costs, and ensures uniform seal quality.
Industries Served: Logistics, e-commerce fulfillment centers, food and beverage, electronics, pharmaceuticals, consumer goods, and manufacturing packaging.
SEO Keywords:
Automatic Carton Edge Sealing Machine L Type CCP-FH500L, automatic carton edge sealer, industrial edge sealing machine, L-type carton sealing equipment, packaging automation.
2. Definition and Function
The CCP-FH500L automates the process of folding and sealing carton edges with high precision. The L-type design allows easy access from the side for carton placement while maintaining consistent edge sealing quality.
Core Functions:
Fully automatic edge folding and sealing
Hotmelt or adhesive sealing for reliable closure
Adjustable carton guides for different carton sizes
Integration with conveyor systems for continuous operation
PLC control for speed, adhesive, and carton size adjustments
3. Key Advantages
| Advantage | Description |
|---|---|
| High Efficiency | Fully automated edge folding and sealing reduces packaging time |
| Consistent Quality | Uniform adhesive application ensures strong, reliable seals |
| Labor Saving | Minimal operator intervention required |
| Flexible Carton Sizes | Adjustable guides handle a variety of carton dimensions |
| Durable Construction | Heavy-duty frame ensures long-term operational stability |
| User-Friendly Operation | PLC interface and semi-automatic loading simplify use |
| Safety Features | Emergency stop buttons and protective guards included |
| Low Maintenance | Easy access to components reduces downtime |
4. Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Automatic Carton Edge Sealing Machine L Type CCP-FH500L |
| Carton Length Range | 150–600 mm |
| Carton Width Range | 120–500 mm |
| Carton Height Range | 100–450 mm |
| Tape Width | 48–60 mm |
| Sealing Mode | Fully automatic L-type edge sealing with hotmelt adhesive |
| Sealing Speed | 20–35 cartons per minute |
| Power Supply | 220–380V, 50/60 Hz |
| Machine Power | 1.5–2.2 kW |
| Weight | 320–400 kg |
| Dimensions (L×W×H) | 1500×750×1450 mm |
| Operating Temperature | 0–45°C |
| Control Type | PLC-based automatic operation |
5. Working Principle
Carton Loading: Cartons are loaded manually or via automatic conveyor into the L-type sealing area.
Edge Folding: The machine folds carton edges automatically.
Hotmelt Adhesive Application: Adhesive is applied along the edges to ensure a secure seal.
Carton Discharge: Sealed cartons exit for palletizing or further packaging processes.
The fully automatic operation ensures high-speed, precise, and uniform sealing for all compatible cartons.
6. Core Components
PLC Control Panel: Allows easy adjustment of speed, carton size, and adhesive parameters
Hotmelt Sealing Head: Provides precise and reliable adhesive application
Conveyor System: Smooth carton transportation ensures efficient operation
Adjustable Carton Guides: Accommodates multiple carton dimensions
Safety Guards: Protect operators from moving parts
Industrial Frame: Heavy-duty construction for durability
7. Industry Applications
Logistics and Warehousing
Facilitates rapid packing for shipment processing, ensuring high-quality edge sealing.
E-Commerce Fulfillment Centers
Supports high-volume packaging, enhancing efficiency and reducing labor requirements.
Food and Beverage Industry
Hygienic sealing of cartons for food products and beverages.
Electronics and Consumer Goods
Secure sealing for protective packaging of electronics and other consumer items.
Pharmaceutical Packaging
Reliable and compliant sealing for pharmaceutical cartons.
8. Installation and Integration
Installation Requirements:
Level concrete surface
Stable electrical supply (220–380V)
Adequate workspace for operator access
Optional integration with upstream and downstream conveyors
Setup Tips:
Level the machine base and secure it with bolts
Connect power according to specifications
Adjust guides to match carton dimensions
Train operators on safety and operational procedures
9. Safety Features
Emergency stop buttons for immediate shutdown
Protective panels and guards to prevent operator injury
Sensors detect carton misalignment or jams
Audible alarms for operational issues
Operator Recommendations:
Avoid reaching into moving machinery
Disconnect power before performing maintenance
Inspect conveyor belts and adhesive heads regularly
10. Maintenance Guidelines
| Frequency | Task |
|---|---|
| Daily | Clean adhesive heads, remove debris, inspect conveyor |
| Weekly | Lubricate moving parts, check rollers and sensors |
| Monthly | Inspect motor bearings, calibrate adhesive tension, inspect electrical connections |
| Yearly | Replace worn components, full operational inspection |
11. Common Issues and Troubleshooting
| Issue | Cause | Solution |
|---|---|---|
| Wrinkled Seal | Incorrect adhesive temperature or tension | Adjust temperature and tension settings |
| Misaligned Carton | Incorrect guide setup | Realign carton guides |
| Conveyor Jam | Debris or carton blockage | Clear obstruction and clean conveyor |
| Uneven Adhesive | Dirty or worn hotmelt head | Clean or replace adhesive head |
12. Comparison With Other Machines
| Feature | Manual Edge Sealer | CCP-FH500L | Fully Automatic Sealing Line |
|---|---|---|---|
| Operator Requirement | High | Low | Very Low |
| Sealing Speed | Low | Medium | High |
| Seal Consistency | Variable | Consistent | Highly Consistent |
| Labor Dependency | High | Moderate | Low |
| Maintenance | Simple | Moderate | Moderate |
The Automatic Carton Edge Sealing Machine L Type CCP-FH500L is a reliable and efficient solution for medium to high-volume industrial packaging. Its fully automated operation ensures consistent sealing quality, reduces labor costs, and integrates seamlessly with existing production lines. Ideal for logistics, e-commerce, food, pharmaceuticals, and consumer goods packaging environments.
