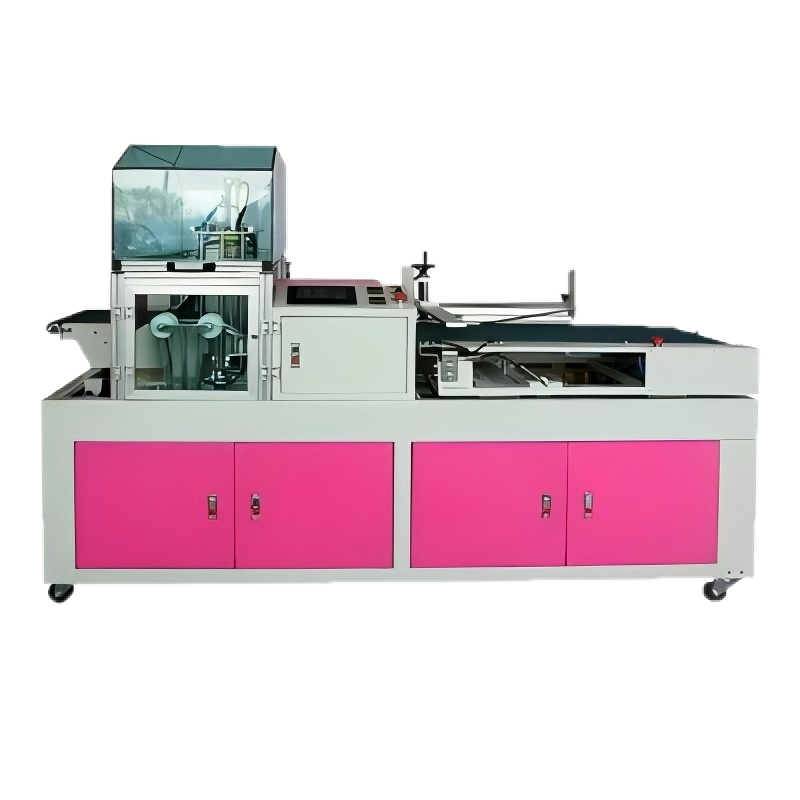

Sleeve Sealer Machine for Packaging Bottles and Containers

A sleeve sealer machine for packaging bottles and containers is a key piece of equipment in modern packaging lines for food, beverages, cosmetics, pharmaceuticals, household chemicals, and many other products.

It applies a plastic sleeve or film around individual bottles, multipacks, or groups of containers, and then seals and shrinks the film to create a tight, protective package.

This long‑form guide explains what a sleeve sealer machine is, how it works, the main types, technical specifications, benefits, and application scenarios.

It is written in clear English and structured for SEO‑friendly performance, making it suitable as a blog article, category page, or industry information page.

1. What Is a Sleeve Sealer Machine?

A sleeve sealer machine is a packaging machine that wraps products or groups of products with a continuous roll of heat‑shrinkable film or pre‑formed sleeve, then seals the film and typically sends the package through a shrink tunnel.

When used for packaging bottles and containers, the sleeve sealer creates a stable, tamper‑evident, and visually appealing bundle or individual wrap.

In a typical bottle packaging line, the sleeve sealer machine is positioned after filling and capping, and often before cartoning or palletizing.

The machine can be integrated with conveyors, accumulation tables, labeling systems, and inspection equipment.

1.1 Key Functions of a Sleeve Sealer Machine

• Feeding bottles and containers from an infeed conveyor
• Arranging products into rows, layers, or group configurations
• Wrapping products with shrink film or a pre‑formed sleeve
• Cutting and sealing the film to form a loose or tight sleeve
• Transferring the wrapped bottles or containers into a shrink tunnel
• Heat shrinking the sleeve to conform to the product shape
• Discharging the finished package to the next production stage

1.2 Sleeve Sealer vs. Shrink Wrapper

In practical usage, the terms sleeve sealer machine and shrink wrapper are often used interchangeably.

However, sleeve sealer machines are commonly associated with:

• Using heavier gauge polyethylene or polyolefin film
• Creating bundles or multipacks (e.g., 6‑pack or 12‑pack bottles)
• Leaving open sides (“bull’s‑eye” holes) or fully enclosed sleeves
• Handling medium to large products or groups of smaller products

For bottles and containers, the sleeve sealer can be designed for:

• Bundling multiple bottles as a promotional multipack
• Wrapping single large containers for dust and moisture protection
• Creating transport‑ready packaging on trays, pads, or without support

2. Main Types of Sleeve Sealer Machines

Sleeve sealer machines for bottles and containers come in several designs to match different production requirements, product sizes, and packaging formats.

Below are the main types commonly seen in the industry.

2.1 Semi‑Automatic Sleeve Sealer Machine

A semi‑automatic sleeve sealer machine requires some level of manual operation, such as:

• Manual product loading or positioning
• Operator‑triggered sealing cycle (e.g., via push button or foot pedal)
• Manual removal of finished packages in low‑volume lines

These semi‑automatic systems are suitable for:

• Lower production capacities
• Frequent product changes
• Small and medium enterprises
• Pilot plants and testing lines

2.2 Fully Automatic Sleeve Sealer Machine

A fully automatic sleeve sealer machine automatically feeds products, arranges bottles into the correct configuration, wraps, seals, and discharges the package, usually without direct operator intervention, except for film roll changes and routine supervision.

Automatic sleeve sealer machines are ideal for:

• High‑speed bottling lines
• 24/7 industrial production
• Large beverage plants
• Cosmetics and personal care manufacturers
• Household chemical packaging

2.3 Inline vs. 90‑Degree Sleeve Sealer

Sleeve sealer machines can be categorized by conveyor layout:

• Inline sleeve sealer: The infeed and outfeed are in a straight line, suitable for integrated high‑speed lines and limited layout changes.
• 90‑degree (L‑type) sleeve sealer: The infeed is at a right angle to the shrink tunnel, useful for flexible plant layouts or when integrating with existing equipment.

2.4 Single‑Roll vs. Double‑Roll Film Sleeve Sealer

According to the film configuration, sleeve sealers include:

• Single‑roll film sleeve sealer: Uses one roll of center‑folded film. The product passes into the fold and a sealer bar closes the open side.
• Double‑roll film sleeve sealer: Uses two rolls of flat film. The films meet around the product and a vertical sealer creates the sleeve.

Both types can be used for packaging bottles and containers in clear or printed shrink film.

3. Working Principle of a Sleeve Sealer Machine for Bottles and Containers

Although designs can differ, most sleeve sealer machines follow a similar working principle.

Understanding this sequence is important for choosing, operating, and maintaining the equipment.

3.1 Basic Process Flow

1. Product Infeed – Bottles or containers arrive on the conveyor from upstream equipment such as fillers, cappers, or labelers.
2. Grouping and Collation – A collation system arranges products into required patterns (e.g., 2x3, 3x4, single file) using pusher bars, gating systems, or servo‑driven devices.
3. Sleeve Formation – The film roll unwinds and creates a “sleeve” around the product group. With center‑folded film, products pass into the film and the open edges are sealed. With twin rolls, film edges meet and are sealed.
4. Sealing and Cutting – A hot sealing bar or continuous sealing system closes the film and separates one package from the next. This creates a loosely fitted sleeve around bottles or containers.
5. Transfer to Shrink Tunnel – The film‑wrapped bottles move into a heated shrink tunnel on a conveyor or mesh belt.
6. Heat Shrinking – Hot air in the tunnel causes the shrink film to contract, tightly conforming to the bottle group or container shape.
7. Cooling and Discharge – After leaving the tunnel, the pack may pass through a cooling zone or simply be discharged to accumulation or cartoning for further handling.

3.2 Key Components of a Sleeve Sealer Machine

4. Applications of Sleeve Sealer Machines for Bottles and Containers

Sleeve sealer machines are widely used across many industries.

For bottles and containers, the main application categories include:

4.1 Beverage Industry

• Packaging PET water bottles into 6‑pack, 12‑pack, or 24‑pack bundles
• Bundling carbonated soft drink bottles (CSD) for retail or wholesale
• Multipacking energy drinks, juices, iced tea, and sports drinks
• Shrink wrapping glass bottles with protective film

4.2 Food Industry

• Grouping edible oil bottles, sauces, and condiments
• Wrapping jars and tubs of spreads, pickles, and preserves
• Creating transport packs for dairy products, yogurt drinks, and flavored milks

4.3 Personal Care and Cosmetics

• Bundles of shampoo and conditioner bottles
• Promotional packs of body wash, lotion, and hair care products
• Combined sets of cosmetic containers and bottles

4.4 Household and Industrial Chemicals

• Multipacks of cleaning product bottles
• Containers of detergents, fabric softeners, disinfectants
• Packaging of lubricants and industrial fluids in bottles or cans

4.5 Pharmaceutical and Healthcare

• Wrapping disinfectant and sanitizer bottles
• Packaging nutraceutical and supplement containers
• Multipacks of healthcare liquids and syrups

5. Advantages of Using a Sleeve Sealer Machine for Bottle and Container Packaging

Using a sleeve sealer machine for packaging bottles and containers offers a wide range of benefits compared with manual packaging or alternative wrapping methods.

5.1 Improved Packaging Efficiency

• High throughput with consistent speed on automated production lines
• Reduced labor requirements and lower operating costs
• Minimized human handling and ergonomic risks

5.2 Strong and Secure Bundles

• Tight shrink film holds bottles or containers firmly together
• Better stability during transport and storage
• Protection against accidental product separation

5.3 Enhanced Product Protection

• Barrier against dust, dirt, and moisture
• Basic tamper‑evidence when combined with perforations or security seals
• Reduced risk of label damage due to additional outer layer

5.4 Attractive Presentation and Branding

• Clear film maintains visibility of primary labels and branding
• Printed shrink film enables all‑around graphic coverage for multipacks
• Neat and uniform packs improve shelf impact

5.5 Flexibility Across Product Ranges

• Simple changeovers for different bottle sizes and container shapes
• Ability to create different pack configurations (2‑pack, 3‑pack, 4‑pack, 6‑pack, etc.)
• Adjustable settings for different film types and thicknesses

5.6 Cost‑Effective Secondary Packaging

• Lower material cost than some carton‑based solutions
• Reduced packaging weight compared to full cardboard boxes
• Optimization of film consumption with efficient sealing and shrink control

6. Common Packaging Formats for Bottles and Containers

Sleeve sealer machines support a variety of packaging formats for bottles and containers, depending on market requirements and distribution channels.

6.1 Open‑Sided “Bull’s‑Eye” Packs

In many beverage multipacks, the shrink film covers the top and bottom surfaces and wraps partially around the sides.

Round openings at both ends of the bundle are commonly called “bull’s‑eyes”.

This style:

• Reduces film usage compared to full overwrap
• Provides easy handholds for carrying packs
• Is widely accepted in retail environments for bottled water and soft drinks

6.2 Full Overwrap Packs

A full overwrap uses film that completely surrounds the bottle group with no open ends.

This option:

• Offers better dust and moisture protection
• Improves tamper evidence
• Is preferred for some food, cosmetic, or pharmaceutical bottle packaging

6.3 Tray‑Supported Shrink Packs

Here, bottles or containers are placed on a cardboard or corrugated tray and then shrink wrapped.

This format:

• Combines structural support from the tray with film bundling
• Improves stacking strength and pallet stability
• Is widely used in high‑volume beverage and food distribution

6.4 Pad‑Supported or No‑Tray Bundles

In some applications, a simple cardboard pad or no support at all is used under the bottle group.

This approach:

• Minimizes packaging material cost
• Is suitable when bottle shape and film thickness provide enough rigidity
• Can be selected based on transport distance and handling conditions

7. Shrink Film Materials Used with Sleeve Sealer Machines

Sleeve sealer machines for packaging bottles and containers typically run on various shrink film materials.

Choosing the right film type is essential for performance, appearance, and cost control.

7.1 Common Shrink Film Types

7.2 Film Thickness and Width Selection

• Thickness is usually in the range of 25–120 microns (1–4.7 mil), depending on product weight and bundle configuration.
• Width is chosen according to the size of the bottle group or container dimensions, allowing sufficient film overlap for sealing.
• Printed film may require precise registration and machine adjustments to align graphics with bottle positions.

8. Technical Specifications of Sleeve Sealer Machines

Technical specifications of sleeve sealer machines vary widely, but common parameters help users compare models and evaluate their suitability for packaging bottles and containers.

8.1 Typical Technical Specification Table

8.2 Example Bottle and Container Size Ranges

Sleeve sealer machines are typically capable of handling a broad range of bottle and container sizes:

• Bottle diameters: from small 30 mm containers up to 120 mm or larger
• Bottle heights: from short 100 mm bottles up to 350–450 mm containers
• Group configurations: from single containers to 2x2, 2x3, 3x4, and other arrangements

9. How to Choose a Sleeve Sealer Machine for Bottles and Containers

Selecting the best sleeve sealer machine for packaging bottles and containers requires evaluating technical, operational, and economic factors.

9.1 Define Packaging Requirements

• Product type: beverage, food, cosmetics, chemicals, pharmaceuticals
• Bottle or container dimensions and shapes
• Desired pack configurations (e.g., 6‑pack, 12‑pack, full overwrap, tray plus film)
• Required line speed and production volume

9.2 Evaluate Machine Capacity and Speed

• Check maximum and minimum product sizes supported
• Compare packaging speed with current and future demand
• Consider peak season or promotional campaign volumes

9.3 Consider Automation Level

• Choose semi‑automatic machines for small output and high flexibility
• Opt for fully automatic systems for high‑speed production and integrated lines
• Look at future upgrade potential if starting with semi‑automatic equipment

9.4 Check Film Compatibility

• Ensure the machine is compatible with the desired film material (PE, POF, PVC)
• Verify film thickness range and roll width capacity
• Assess registration systems if printed film is required

9.5 Integration with Existing Lines

• Verify conveyor height and direction (inline or 90‑degree)
• Check communication options with upstream and downstream equipment
• Plan layout to minimize bottlenecks and improve product flow

9.6 Maintenance, Safety, and Operator Training

• Choose a design with accessible components for easy cleaning and maintenance
• Verify safety features such as guards, interlocks, and emergency stops
• Consider ease of operator training and availability of documentation

10. Operating a Sleeve Sealer Machine for Bottles and Containers

Proper operation of a sleeve sealer machine ensures consistent packaging quality and maximizes equipment life.

Below is a general overview of typical operating steps.

10.1 Start‑Up Procedure

1. Verify correct film roll installation and threading through the forming and sealing section.
2. Check that the conveyor is clear and safety guards are closed.
3. Power on the machine and the shrink tunnel, then set appropriate temperatures.
4. Adjust conveyor speed and product separation as needed.
5. Run a few test products to confirm sealing position and shrink quality.

10.2 Routine Operation

• Monitor film roll diameter and prepare for roll changes before complete depletion.
• Visually inspect seals and shrink appearance and make minor adjustments as required.
• Keep the infeed area organized and prevent product jams.
• Record basic parameters such as temperature settings and speed for repeatability.

10.3 Common Quality Checks

• Seal strength and appearance (no burn‑through or incomplete seals)
• Uniform shrinkage without excessive wrinkles or “dog ears”
• Correct positioning of film relative to bottle labels and caps
• Bundle stability and resistance to handling or transport forces

11. Maintenance and Safety Considerations

Maintaining a sleeve sealer machine in good condition is essential for reliable performance and safe operation.

11.1 Preventive Maintenance Tasks

• Regular cleaning of conveyors, tunnel interior, and air ducts
• Inspection of sealing bar surfaces and replacement of Teflon covers when worn
• Checking electrical connections, sensors, and heating elements
• Lubricating moving parts according to machine instructions
• Monitoring wear on belts, chains, and mechanical guides

11.2 Safety Practices

• Only trained personnel should operate and maintain the machine.
• Always lock out and tag out power sources before performing internal maintenance.
• Never bypass safety guards or devices.
• Use proper personal protective equipment when working near hot surfaces.

12. Trends and Developments in Sleeve Sealer Technology

Technology for sleeve sealer machines used to package bottles and containers continues to evolve, focusing on flexibility, energy efficiency, and sustainability.

12.1 Energy‑Efficient Shrink Tunnels

• Improved insulation to reduce heat loss
• Optimized airflow design for better heat distribution
• Advanced controls that modulate power based on load

12.2 Servo‑Driven Systems

• Servo motors for smooth acceleration and deceleration
• More accurate product positioning and grouping
• Reduced mechanical wear and improved repeatability

12.3 Sustainable Film Options

• Thinner yet stronger films to reduce material consumption
• Recyclable or bio‑based films in certain applications
• Improved compatibility with circular economy goals

12.4 Smart Controls and Data Monitoring

• Integration with plant networks for data collection and reporting
• Remote diagnostics and software updates
• Predictive maintenance based on sensor feedback

13. Example Use Cases for Sleeve Sealer Machines

To illustrate how sleeve sealer machines are used in real‑world operations, here are example scenarios for bottle and container packaging.

13.1 Bottled Water Multipacks

A high‑speed line produces individual PET water bottles.

The sleeve sealer machine:

• Receives a constant flow of bottles from upstream conveyors
• Forms groups of 6, 12, or 24 bottles depending on orders
• Applies clear PE shrink film using a double‑roll sleeve system
• Creates stable multipacks suitable for palletizing and retail sale

13.2 Promotional Cosmetic Bundles

A cosmetics manufacturer offers seasonal promotions combining different bottles and containers in a single pack.

The sleeve sealer machine:

• Handles various container heights and shapes with minimal adjustment
• Uses printed POF film for high‑quality branding
• Produces compact bundles for display in retail environments

13.3 Cleaning Product Distribution Packs

Household cleaning products are often shipped in larger secondary packs.

The sleeve sealer machine:

• Bundles multiple bottles of detergent or disinfectant
• Can work with trays or pads to reinforce heavy packs
• Ensures packs withstand transportation and warehouse handling

14. Checklist for Implementing a Sleeve Sealer Machine Project

When planning to add or upgrade a sleeve sealer machine for packaging bottles and containers, a structured checklist helps ensure a successful project.

15. Conclusion

A sleeve sealer machine for packaging bottles and containers is an essential part of many modern packaging lines, providing efficient multipacking, strong protection, and attractive presentation.

By understanding machine types, working principles, film options, and key specifications, manufacturers can select the right solution for their products and production requirements.

Whether for beverages, foods, personal care items, household chemicals, or healthcare products, sleeve sealer machines help optimize bottle and container packaging, reduce handling costs, and improve line efficiency.

Careful planning, proper operation, and regular maintenance will ensure long‑term, reliable performance in demanding industrial environments.
